Lenovo S4600 480GB 2.5

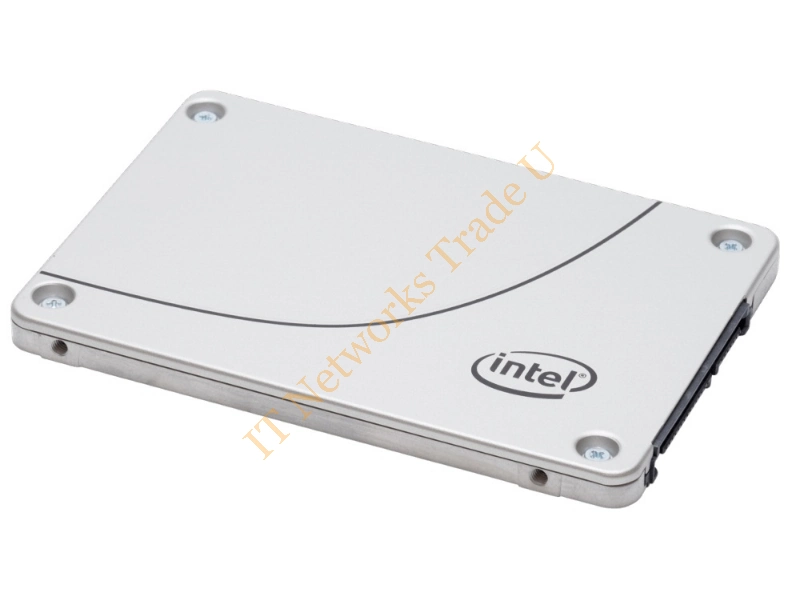

Lenovo S4600 480GB 2.5" SAS - Solid State Drives

(0 Reviews)
Category: Solid State Drives
Availability: Out of Stock
Part Number: 7SD7A05722
Manufacturer: Lenovo
Payment Methods: Visa American Express Discover Mastercard PayPal
Inc. VAT
MSRP:
Ex. VAT
MSRP:

-You Save:



REQUEST A QUOTE

Request a quote below or call 02079938331 for further assistance with this part number

Get exclusive discounts on bulk orders

The Intel S4600 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.The Intel SSD S4600 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.The Intel S4600 Enterprise Mainstream SATA solid-state drive is shown in the following figure. Industry-standard 2.5-inch or 3.5-inch form factorsCost-effective Intel 3D NAND TLC Flash MemoryEndurance of 3 drive writes per day (DWPD) for 5 years, using Intel High Endurance Technology (HET). The total number of bytes that can be written to the drive (TBW) is as follows240 GB drive: 1.40 PB480 GB drive: 2.95 PB960 GB drive: 5.25 PB1.92 TB drive: 10.84 PBSATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise spaceHigh reliability and enhanced ruggednessEnergy saving, with 5 W typical power consumption per driveAbsence of moving parts to reduce potential failure points in the serverS.M.A.R.T. supportAdvanced Encrypting Standard (AES) 256-bit encryptionFull end-to-end data path protectionThermal throttling to extend the life of the driveEnhanced power loss data protection Industry-standard 2.5-inch or 3.5-inch form factorsCost-effective Intel 3D NAND TLC Flash MemoryEndurance of

Hard drive
Solid-state drive capacity480 GB
Solid-state drive interfaceSAS
Memory type3D TLC
Performance
Intel High Endurance Technology (HET)Yes
Component forServer/workstation
NAND flash typeTLC (Triple Level Cell)
Power loss protectionYes
Data path protectionYes
TBW rating2.95
End-to-End Data ProtectionYes
Endurance rating (for 5 years)3.36 GB/day
Hot-swapYes
Solid-state drive capacity480 GB
Security algorithms256-bit AES
S.M.A.R.T. supportYes
Solid-state drive interfaceSAS
Memory type3D TLC
Random write (4KB)60000 IOPS
Random read (4KB)72000 IOPS
Mean time between failures (MTBF)2000000 h
Latency (write)36 µs
Latency (read)36 µs
Enhanced Power Loss Data Protection technologyYes
Data transfer rate6000 Gbit/s
Compatible productsThinkSystem ST550, SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530, SN550, SN850
Data transmission
Random write (4KB)60000 IOPS
Random read (4KB)72000 IOPS
Latency (write)36 µs
Latency (read)36 µs
Data transfer rate6000 Gbit/s
Security
Security algorithms256-bit AES
Endurance
Endurance rating (for 5 years)3.36 GB/day
Mean time between failures (MTBF)2000000 h
Certificates
RoHS complianceYes
CertificationFCC Title 47, Part 15B, Class B
CA/CSA-CEI/IEC CISPR 22:02
EN 55024: 1998
EN 55022: 2006
EN-60950-1 2nd Edition
UL/CSA EN-60950-1 2nd Edition
Low Voltage Directive 2006/95/EC
C-Tick: AS/NZS3584
BSMI: CNS 13438
KCC Article 11.1
RoHS DIRECTIVE 2011/65/EU
WEEE Directive 2002/96/EC
Design
RoHS complianceYes
Colour of productAluminium
CertificationFCC Title 47, Part 15B, Class B
CA/CSA-CEI/IEC CISPR 22:02
EN 55024: 1998
EN 55022: 2006
EN-60950-1 2nd Edition
UL/CSA EN-60950-1 2nd Edition
Low Voltage Directive 2006/95/EC
C-Tick: AS/NZS3584
BSMI: CNS 13438
KCC Article 11.1
RoHS DIRECTIVE 2011/65/EU
WEEE Directive 2002/96/EC
SSD form factor2.5"
Power
Power consumption (average)4.5 W
Brand-specific features
Intel High Endurance Technology (HET)Yes
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-55 - 95 °C
Operating relative humidity (H-H)5 - 95%
Operating shock1000 G
Operating vibration2.17 G
Non-operating vibration3.13 G
Maximum operating altitude3050 m
Technical details
Hot-swapYes
S.M.A.R.T. supportYes
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-55 - 95 °C
Operating relative humidity (H-H)5 - 95%
Operating shock1000 G
Operating vibration2.17 G
Non-operating vibration3.13 G
Maximum operating altitude3050 m
Intel High Endurance Technology (HET)Yes
Enhanced Power Loss Data Protection technologyYes
Colour of productAluminium
SSD form factor2.5"

  • Capacity: 480GB
